In the demanding world of industrial sealing, precision, reliability, and consistency are non-negotiable. The quality of a spiral wound gasket, a critical component for flanged connections in piping systems, is directly dependent on the machinery used in its production. High-performance Machines For Spiral Wound Gaskets are the cornerstone of manufacturing gaskets that meet stringent international standards such as ASME B16.20, API 601, and DIN/EN standards. At Kaxite Sealing, we engineer and supply advanced machines designed to deliver unparalleled accuracy, efficiency, and durability for gasket manufacturers worldwide. Our equipment transforms premium metal strips and filler materials into robust, dimensionally perfect sealing solutions capable of withstanding extreme pressures, temperatures, and corrosive media.
Choosing the right machinery impacts not only product quality but also production throughput, operational costs, and long-term profitability. This detailed guide explores the technical parameters, features, and considerations essential for selecting the optimal machines for spiral wound gaskets.

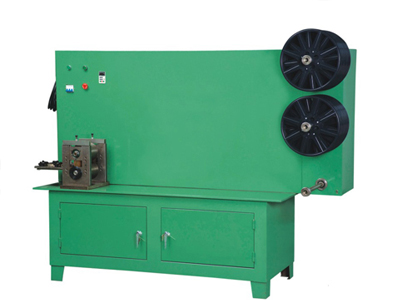

Our machines at Kaxite Sealing are built with modularity and precision in mind. Below are the key technical specifications that define our product range.
| Parameter | Specification |
|---|---|
| Max Metal Strip Width | Up to 75 mm (Standard), Customizable up to 100 mm |
| Metal Strip Thickness Range | 0.15 mm to 1.2 mm (e.g., 304SS, 316SS, Inconel, Titanium) |
| Filler Material Strip Width | Up to 80 mm (e.g., Graphite, PTFE, Ceramic, Mica) | Mandrel Range (Determines Gasket ID) | From 15 mm to 2000 mm diameter, with quick-change mandrel systems |
| Winding Pitch (Distance between Spirals) | Precisely controllable from 2.5 mm to 8.0 mm |
| Strip Tensioning System | Servo-controlled, independent for metal and filler, ensuring uniform winding density |
Beyond basic specifications, our machines incorporate features that set the industry benchmark.
Q: What is the most critical factor when selecting a machine for spiral wound gaskets?
A: The most critical factor is precision and repeatability in controlling the winding pitch and strip tension. Inconsistent pitch or tension leads to variable density in the gasket cross-section, which can cause compression imbalances and leakage in service. Kaxite Sealing machines use servo-driven tensioning and a precision ball-screw winding mechanism to ensure each spiral is formed identically, guaranteeing consistent gasket density and mechanical properties across every production batch.
Q: Can one machine handle all gasket sizes and material grades?
A: While our machines are highly versatile, a single machine has a defined operational range. The key limiting factors are the maximum outer diameter (mandrel size) and the thickness/strength of the metal strip. For instance, a machine designed for gaskets up to 1200mm OD (like our KX-SWG1200) might not be rigid enough for the forces involved in winding a 2000mm OD gasket with thick Inconel. Similarly, winding very thin, soft foil requires different tension control than thick, hard strip. We recommend selecting a model based on your core product range and consulting with our engineers for specialized applications.
Q: How does automation in these machines improve product quality and reduce waste?
A: Automation is central to modern gasket manufacturing. Our PLC-controlled systems eliminate human error in setting pitch, count, and diameter. The automatic guiding system prevents strip misalignment that can cause scrap. Precise tension control ensures optimal material usage without over-stretching or buckling. Furthermore, programmable recipes mean settings for a specific gasket type are saved and recalled perfectly every time, ensuring batch-to-batch consistency. This reduces material waste, minimizes rework, and delivers a reliably high-quality product.
Q: What maintenance do these machines require, and what is the expected lifespan?
A: Kaxite Sealing machines are built for industrial durability with a design lifespan exceeding 15 years with proper maintenance. Daily maintenance involves basic cleaning and visual checks. Key periodic maintenance includes:
Q: Can the machine produce gaskets with outer rings or inner rings?

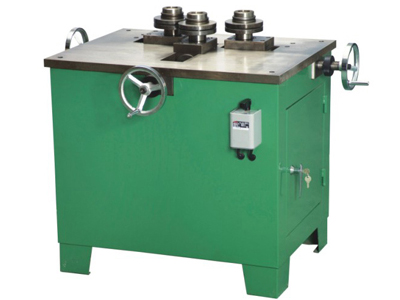

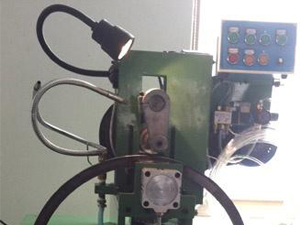

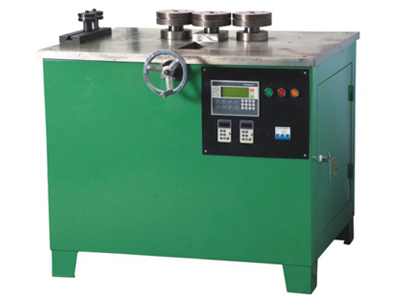

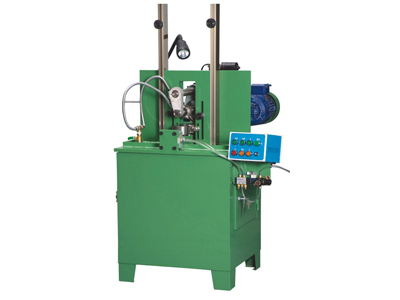

A: Yes, our standard machines are primarily for producing the spiral wound core itself. However, Kaxite Sealing offers integrated systems or secondary stations. For gaskets with centering rings (ASME Type B), the wound core can be automatically transferred to a ring-seaming station. For producing metal-jacketed gaskets or those with inner/outer rings attached, we provide semi-automatic or fully automatic assembly workcells that integrate with the winding machine, creating a complete production line.
Q: What support does Kaxite Sealing provide after the purchase?
A: Our commitment extends far beyond the sale. We provide a complete package: detailed installation supervision and commissioning by our engineers, comprehensive operator and maintenance training at your facility, a standard 18-month warranty on parts and labor, and lifetime technical support. We maintain a global inventory of commonly required spare parts for fast dispatch. Furthermore, we offer software updates for the control system to ensure your machinery stays current with the latest features.
Estimating production output depends on gasket size, material, and operator skill. Below is a reference table for a mid-range model, the KX-SWG600.
| Gasket Size Range (OD in mm) | Average Cycle Time (Minutes) | Estimated Shift Output (8 Hours, 85% Efficiency) |
|---|---|---|
| 50 - 150 mm | 3 - 5 | 80 - 135 pieces |
| 150 - 300 mm | 7 - 12 | 35 - 70 pieces |
| 300 - 600 mm | 15 - 25 | 20 - 35 pieces |
Note: These figures are for standard graphite-filled stainless steel gaskets. Output for exotic materials (PTFE, ceramic fiber) or thicker metals may vary. The integration of features like dual-station winding can significantly increase output for smaller gaskets.
Investing in a machine for spiral wound gaskets is a strategic decision. A Kaxite Sealing machine is designed as the heart of a modern production cell. It can be integrated with:
