Durable Ring Joint Gaskets in China for Industrial Sealing Solutions

What Are Ring Joint Gaskets?

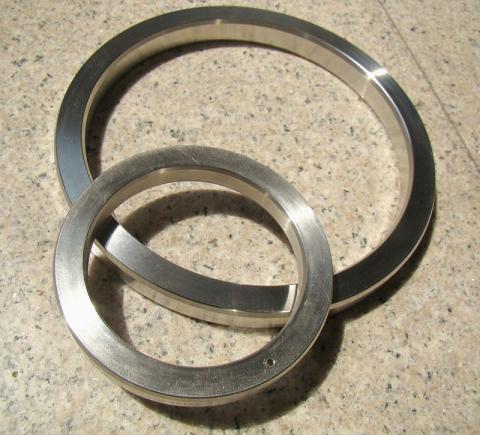

Ring Joint Gaskets (RJ Gaskets) are precision-engineered sealing components designed for high-pressure, high-temperature, and critical service applications. They form a metal-to-metal seal by being compressed into a specially machined groove in flanges, creating a highly reliable, leak-tight barrier. Primarily used in the oil and gas, petrochemical, and power generation industries, these gaskets are essential for ensuring safety, environmental protection, and operational integrity in systems containing volatile or hazardous fluids.

Key Features and Benefits of Our Ring Joint Gaskets

Our RJ gaskets are manufactured to the highest international standards, offering unmatched performance and durability.

• Exceptional Sealing Integrity: Provides a leak-proof seal under extreme pressures and thermal cycling, preventing fugitive emissions.
• High-Pressure & Temperature Resistance: Engineered to perform reliably in services exceeding 15,000 psi and temperatures from cryogenic to over 1000°F (538°C).
• Reusability: Properly selected and installed ring gaskets can often be reused, offering cost-efficiency over time.
• Material Versatility: Available in a wide range of materials to match specific service conditions, including corrosive media.
• Conforms to Global Standards: Manufactured in strict compliance with ASME B16.20, API 6A, and other relevant specifications.
• Precision Machining: Each gasket is precision-machined to ensure perfect geometry, surface finish, and dimensional accuracy for optimal seating.

Detailed Product Specifications and Materials

Selecting the correct Ring Joint Gasket requires careful consideration of size, style, and material. Our product range covers all standard and many specialized requirements.

1. Types and Styles

Ring Joint Gaskets are categorized by their cross-sectional shape, which must match the corresponding flange groove.

2. Standard Sizes and Pressure Ratings

Our gaskets are available for standard flange sizes and pressure classes. The table below outlines common sizes.

3. Material Selection Guide

The choice of material is critical for corrosion resistance, temperature capability, and mechanical strength. We offer a comprehensive selection.

Installation Guidelines for Ring Joint Gaskets

Correct installation is paramount to achieving a safe, leak-free seal. Follow these key steps:

1. Inspection: Thoroughly clean the flange sealing surfaces and the ring groove. Inspect for any damage, scratches, pitting, or old gasket material. The groove must be clean and smooth.
2. Gasket Selection Verification: Confirm the ring gasket style (R, RX, BX), size (Ring Number), and material are correct for the flange and service conditions.
3. Lubrication: Apply a thin, even film of approved high-temperature anti-seize lubricant to the gasket surfaces. This prevents galling during make-up and aids in disassembly. Do not use graphite-based lubricants in oxidizing atmospheres at high temperatures.
4. Placement: Carefully place the gasket into the bottom flange groove, ensuring it sits evenly without twisting.
5. Bolt Make-Up: Use a cross-pattern tightening sequence (star pattern). Tighten bolts in multiple passes (typically 3-4) to the specified torque value provided by the flange manufacturer or using ASME PCC-1 guidelines. This ensures even compression of the gasket.
6. Re-torquing: For critical services, a re-torque after 24 hours of operation or a heat cycle may be recommended to compensate for bolt relaxation.

Warning: Never reuse a gasket that shows signs of flattening, cracks, heavy compression, or galling. Always use new gaskets for pressure-containing integrity.

Ring Joint Gaskets: Frequently Asked Questions (FAQ)

Q: What is the main difference between R, RX, and BX style gaskets?

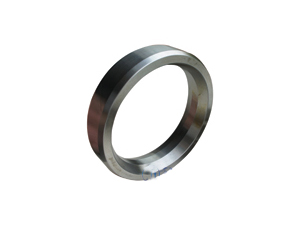

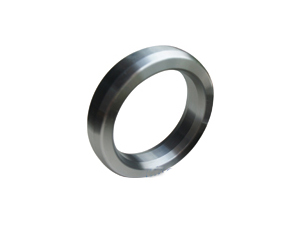

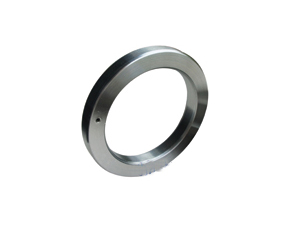

A: The primary difference lies in their cross-sectional shape and application pressure range. R-style (oval) is for standard high-pressure applications. RX-style is a pressure-energized oval that provides a better seal at higher pressures and can sometimes interchange with R grooves. BX-style (octagonal) is engineered for the most extreme pressures (often 5,000 psi and above) and critical services like wellheads; it requires a perfectly matched BX groove and cannot be interchanged with R or RX.

Q: Can I use an RX gasket in an R-style groove?

A: In some cases, yes, but it is not universally recommended or approved. The RX gasket is designed to be interchangeable with R grooves of the same number according to API 6A specifications, primarily for wellhead equipment. However, for standard ASME B16.5 piping flanges, you should always use the gasket style specified for the flange. Consult the flange manufacturer's guidelines or a sealing specialist before attempting substitution.

Q: How do I identify the correct Ring Joint Gasket size (Ring Number)?

A: The Ring Number is typically stamped on the outer surface of the gasket (e.g., R24, BX-154). For ordering, you need the flange's Nominal Pipe Size (NPS), Pressure Class (e.g., 900#), and the flange standard (e.g., ASME B16.5). These parameters correspond to a specific Ring Number as defined in ASME B16.20 or API 6A. Always refer to engineering documents or measure the groove dimensions if the specification is unknown.

Q: Why is lubrication necessary during installation?

A: Lubrication serves two vital purposes. First, it prevents galling (cold welding) between the soft metal gasket and the harder flange material during the high-stress compression of bolt tightening. Second, it ensures smoother, more even compression of the gasket into the groove, facilitating a better seal and making future disassembly possible without damaging the flange grooves.

Q: What are the consequences of over-torquing the flange bolts?

A: Over-torquing can have severe consequences: it can completely crush and deform the ring gasket, destroying its sealing ability and potentially causing it to fracture. It can also over-stress the bolts, leading to thread damage, bolt stretching, or failure. Most critically, it can cause permanent distortion or cracking of the flanges themselves, which is a costly repair. Always follow the specified torque procedure.

Q: How do I choose the right material for a sour service (H2S) application?

A: Sour service, defined by the presence of wet hydrogen sulfide (H2S), requires materials resistant to Sulfide Stress Cracking (SSC) and Hydrogen Induced Cracking (HIC). Standards like NACE MR0175/ISO 15156 provide guidelines. For ring gaskets in sour service, common approved materials include Soft Iron (with proper coating), certain low-alloy steels, Duplex (UNS S31803), and Super Duplex (UNS S32750) stainless steels. The final selection must consider partial pressure of H2S, pH, temperature, and total stress. Always consult with a materials engineer.

Q: Can a Ring Joint Gasket be used for vacuum service?

A: Yes, Ring Joint Gaskets are excellent for high-vacuum applications. Their metal-to-metal seal is highly effective at preventing in-leakage of air. The gasket must be properly installed in a clean, undamaged groove, and the system design must ensure the flanges have sufficient rigidity to prevent distortion under external atmospheric pressure.
