In the world of advanced materials, Carbon Fiber stands as a pinnacle of engineering achievement. Known for its exceptional strength-to-weight ratio, rigidity, and resistance to fatigue, carbon fiber has revolutionized industries from aerospace and automotive to sporting goods and industrial machinery. At Kaxite Sealing, we specialize in harnessing the unique properties of carbon fiber to create sealing solutions and composite components that deliver unparalleled performance and reliability. Our expertise lies in precision engineering and material science, ensuring every product meets the most demanding specifications.
Kaxite Sealing's carbon fiber products are manufactured using state-of-the-art processes, including autoclave curing and resin transfer molding (RTM), to guarantee optimal fiber alignment, resin distribution, and void-free construction. This results in components with consistent mechanical properties and superior surface finish.
Understanding the precise characteristics of our materials is key to selecting the right solution for your application. Below are the detailed parameters for Kaxite Sealing's standard carbon fiber composite offerings.
| Property | Test Method | Typical Value (Unidirectional Layup) | Typical Value (Woven Fabric Layup) |
|---|---|---|---|
| Tensile Strength | ASTM D3039 | 2,200 MPa | 600 MPa |
| Tensile Modulus | ASTM D3039 | 130 GPa | 70 GPa |
| Flexural Strength | ASTM D790 | 1,700 MPa | 750 MPa |
| Flexural Modulus | ASTM D790 | 120 GPa | 60 GPa |
| Compressive Strength | ASTM D6641 | 1,400 MPa | 570 MPa |
| Interlaminar Shear Strength (ILSS) | ASTM D2344 | 90 MPa | 70 MPa |
Q: What exactly is carbon fiber and how is it made?

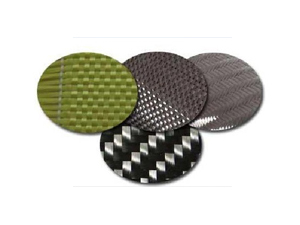

A: Carbon fiber is a high-strength material composed of thin, crystalline filaments of carbon. At Kaxite Sealing, we start with a precursor material, typically polyacrylonitrile (PAN). This precursor undergoes a series of high-temperature treatments in a controlled atmosphere: first stabilization, then carbonization (where non-carbon atoms are driven off), and sometimes graphitization. This process creates long, tightly bonded chains of carbon atoms, resulting in filaments with diameters about 5-10 microns. These filaments are then bundled into "tows" or "rows" and woven into fabrics or aligned into tapes, which are combined with a polymer resin matrix (like epoxy) to form the rigid composite material we use in our sealing solutions.
Q: Why is carbon fiber so strong yet so light?
A: The exceptional strength comes from the molecular structure of the carbon crystals aligned along the fiber's axis. The covalent bonds between carbon atoms are extremely strong. The low density (about 1.6 g/cm³) is due to the atomic structure of carbon itself and the porous nature of the precursor material after pyrolysis. This combination yields a strength-to-weight ratio superior to metals like steel or aluminum. In Kaxite Sealing components, this translates to sealing parts that can withstand extreme pressures without adding significant mass to the assembly, a critical factor in aerospace and high-performance automotive applications.
Q: What are the main advantages of using Kaxite Sealing carbon fiber parts over traditional metal parts?
A: The advantages are multi-faceted. Weight Reduction: Parts can be 40-60% lighter than aluminum equivalents and about 60-75% lighter than steel, leading to energy savings and improved performance. High Strength & Stiffness: They provide exceptional tensile and flexural strength. Corrosion Resistance: Unlike metals, carbon fiber composites do not rust or corrode when exposed to moisture, chemicals, or salt spray. Fatigue Resistance: They excel in applications with cyclic loading, outperforming metals in endurance. Dimensional Stability: They have a very low coefficient of thermal expansion, meaning parts retain their shape and dimensions across temperature fluctuations. Design Flexibility: We can mold complex, net-shape geometries that are difficult or expensive to machine from metal.
Q: Are there any limitations or special considerations when designing with carbon fiber?
A: Yes, understanding these is crucial for successful implementation. Brittleness: While strong in tension, carbon fiber can be brittle and may not yield or deform plastically like metals; impact damage can cause internal delamination. Conductivity: It is electrically conductive, which can be an advantage (for EMI shielding) or a concern (galvanic corrosion when in contact with dissimilar metals—we often incorporate insulating layers). Cost: Raw material and manufacturing costs are generally higher than for common metals, though the total lifecycle cost can be lower. UV Degradation: The resin matrix can degrade under prolonged UV exposure unless protected with a UV-resistant gel coat or paint, a standard offering from Kaxite Sealing. Anisotropic Properties: Strength is directional, based on fiber orientation; our engineering team works closely with clients to optimize the ply schedule for the specific load paths.
Q: How does Kaxite Sealing ensure quality and consistency in its carbon fiber products?
A: Quality is integral to our manufacturing process. We employ a rigorous protocol: Material Certification: All incoming carbon fiber and resin batches are certified and traceable. Process Control: We use automated cutting, precise layup techniques, and controlled curing cycles (often in autoclaves) for repeatability. Non-Destructive Testing (NDT): Critical parts undergo ultrasonic testing or X-ray inspection to detect voids, delaminations, or porosity. Mechanical Testing: We maintain an in-house lab for coupon testing (tensile, flexural, shear) from each production run to validate mechanical properties. Dimensional Inspection: Every finished part is inspected against CAD models using CMM (Coordinate Measuring Machine) or laser scanning to ensure precise tolerances, which is paramount for effective sealing performance.
Q: Can carbon fiber parts from Kaxite Sealing be repaired if damaged?
A: Yes, depending on the extent and location of damage. Minor scratches or surface gel coat cracks can often be sanded and re-coated. For more significant structural damage, such as delamination or a crack, repair involves removing the damaged material in a tapered fashion, cleaning the area, and performing a wet layup or using a prepreg patch to rebuild the section, followed by curing under vacuum or heat. It is a specialized skill, and Kaxite Sealing provides repair guidelines and can often perform professional repair services for our manufactured components. Prevention through proper design (adding impact-resistant layers) is always our first recommendation.
Q: How does the environmental footprint of carbon fiber compare to traditional materials?
A: The production of virgin carbon fiber is energy-intensive, primarily due to the high-temperature processes. However, the lifecycle assessment often shows advantages. The light-weighting effect in transportation (cars, planes) leads to significant fuel savings and reduced CO2 emissions over the vehicle's operational life, which can offset the initial manufacturing energy. Furthermore, Kaxite Sealing is actively involved in sustainability initiatives, including optimizing material usage to minimize waste and exploring the use of recycled carbon fiber (reclaimed from production scrap or end-of-life parts) for non-critical applications. We also follow strict protocols for resin handling and emissions control in our facilities.
The unique properties of our carbon fiber materials make them ideal for a vast range of demanding applications where performance, weight, and reliability are non-negotiable.
