Lens Ring Joint Gasket
Looking for more information on Lens Ring Joint Gasket? We are the China leading Supplier of Lens Ring Joint Gasket.Any need of Lens Ring Joint Gasket,please feel free to congtact us.
-
Double Jacket Gasket
Looking for more information on Double Jacket Gasket? We are the China leading Supplier of Double Jacket Gasket.Any need of Double Jacket Gasket,please feel free to congtact us.
-
Corrugated Gaskets
Looking for more information on Corrugated Gaskets? We are the China leading Supplier of Corrugated Gaskets.Any need of Corrugated Gaskets,please feel free to congtact us.
-
Pure PTFE Gasket
Looking for more information on Pure PTFE Gasket? We are the China leading Supplier of Pure PTFE Gasket.Any need of Pure PTFE Gasket,please feel free to congtact us.
-
PTFE Envelope Gasket
Looking for more information on PTFE Envelope Gasket? We are the China leading Supplier of PTFE Envelope Gasket.Any need of PTFE Envelope Gasket,please feel free to congtact us.

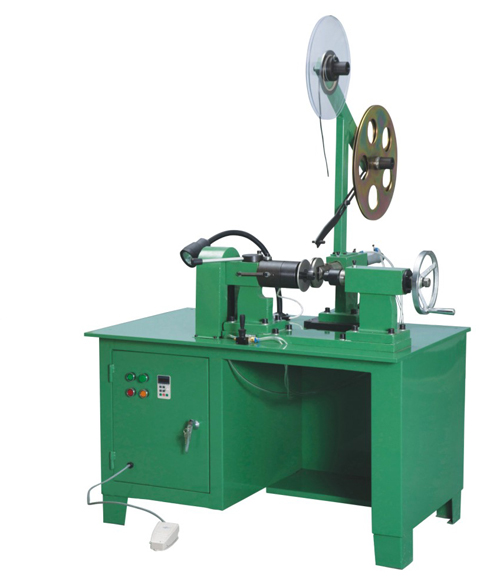

Winding Machine For Small Size SWG
Suitable to produce 1/2"-6" SWG with or without inner ring (Gasket diameter 15MM-200MM)
| Specification as following: | |
| STYLE | KXT E200A winding machine for small size SWG |
| Producing ability | 1/2"—6" spiral wound gasket with or without inner ring |
| SWG thickness | 4.5mm (also suitable for 2.5mm, 3.2mm,6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding) |
| Maximum gasket OD | 200mm |
| Minimum gasket ID | 15mm |
| Gasket OD tolerance | ±0.5mm |
| Spindle motor rotation speed | 0--240rpm |
| Total power | 2.2kw |
| Spindle motor power | 0.75kw |
| Power supply | 380V/220V as request, 3 phases |
| Air compressor | 0.6—0.8 MPA |
| Frequency Converter | 2.2G |
| Machine measurement | 1200*850*1650mm |
| Machine net weight | 280kg |
