Lens Ring Joint Gasket
Looking for more information on Lens Ring Joint Gasket? We are the China leading Supplier of Lens Ring Joint Gasket.Any need of Lens Ring Joint Gasket,please feel free to congtact us.
-
Double Jacket Gasket
Looking for more information on Double Jacket Gasket? We are the China leading Supplier of Double Jacket Gasket.Any need of Double Jacket Gasket,please feel free to congtact us.
-
Corrugated Gaskets
Looking for more information on Corrugated Gaskets? We are the China leading Supplier of Corrugated Gaskets.Any need of Corrugated Gaskets,please feel free to congtact us.
-
Pure PTFE Gasket
Looking for more information on Pure PTFE Gasket? We are the China leading Supplier of Pure PTFE Gasket.Any need of Pure PTFE Gasket,please feel free to congtact us.
-
PTFE Envelope Gasket
Looking for more information on PTFE Envelope Gasket? We are the China leading Supplier of PTFE Envelope Gasket.Any need of PTFE Envelope Gasket,please feel free to congtact us.

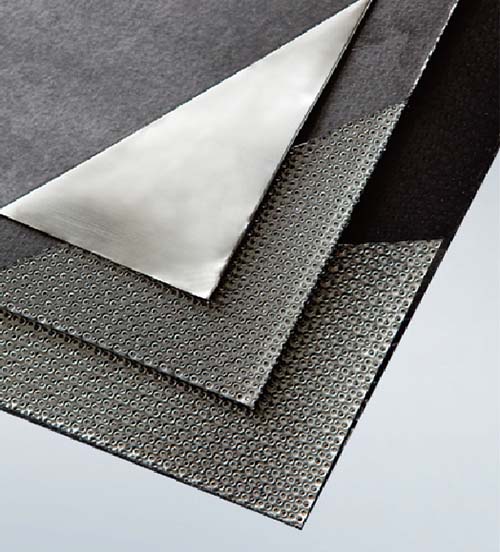

Graphite Sheet reinforced with Tanged Metal
Graphite Sheet Reinforced with tanged metal insert is made from Kaxite B201 Flexible graphite sheet through specially pressing or sticking process. The insert materials can be SS304, SS316, Nickel, etc. It used in kinds of conditions, and various gaskets. .
Description
> Made for various gaskets
> Suitable for petrochemical, mining, vessels, boilers, piping and duct, pumps and valves, flanges
Prime Features
> Lone life and less maintenance
> Replacement for asbestos, new more applications are being indentified daily.
> Excellent comprehensive properties
> Good compressibility and resilience, small stress relaxation, fine compensation function
> Permanently elastic, even in hot-cold cycles over the entire temperature range, no aging, no brittleness, no hot or cold flow.
Technical Data
| Item | Industrial grade | Unclear grade |
| Tolerance of density g/cm3 | +/-0.06 | +/-0.05 |
Carbon content  %
|
98/99 | 99.5 |
|
Tensile strength Mpa
|
3~20 | 5~25 |
|
Compressibility %
|
30 | 30 |
|
Recovery %
|
15 | 15 |
| Sulphur content | 1200 | 700 |
| Chlorine content | 50 | 25 |
| Stress relaxation rate % | 10 | 10 |
| Lgnition loss | 2.0 | 0.5 |
under oxidizing environment-240~+3500
under non-oxidizing environmentPH: 0~14
Dimensions
| Item | Sheets |
| Density g/cm3 | 1.0 |
| Length | 500, 1000, 1500mm |
| Width mm | 1000, 1500, 2000 |
| Thickness mm | 1.5~3.0 |
