Basalt fiber is an advanced inorganic fiber material derived from volcanic rock. Through a high-temperature melting and extrusion process, basalt rock is transformed into continuous filaments that exhibit exceptional performance characteristics. This material represents a significant advancement in composite reinforcement, thermal insulation, and friction materials. As a leader in high-performance material solutions, Kaxite Sealing is committed to providing industry-grade basalt fiber products that meet the most demanding engineering specifications. This guide offers a detailed technical overview of basalt fiber, its properties, applications, and addresses common questions from industry professionals.
**What is Basalt Fiber and How is it Made?**
Basalt fiber is produced from naturally occurring basalt rock, which is quarried, crushed, washed, and then fed into a furnace. The rock is melted at temperatures exceeding 1,400°C (2,552°F). The molten lava is then forced through platinum-rhodium alloy bushings to create continuous filaments. These filaments are subsequently coated with a sizing agent to improve handling and compatibility with resins (e.g., epoxy, polyester) before being wound onto spools or chopped for various applications. The entire process is environmentally friendly, requiring no chemical additives, and produces minimal waste.
**Core Properties and Advantages of Basalt Fiber**
Basalt fiber offers a unique combination of properties that make it suitable for a wide range of industrial applications. Its advantages often position it between E-glass and carbon fibers in terms of performance and cost.
* **High Mechanical Strength:** Superior tensile strength compared to E-glass and many polymer fibers.
* **Excellent Thermal Stability:** Operates continuously from -260°C to +700°C (-436°F to +1292°F) without significant loss of properties.
* **Outstanding Corrosion Resistance:** Highly resistant to alkalis, acids, and salt, offering better longevity than glass fiber in aggressive environments.
* **Good Electrical Insulation:** High dielectric strength and volume resistivity.
* **Superior Sound Absorption:** Effective acoustic damping properties.
* **Natural and Eco-Friendly:** Made from abundant volcanic rock; non-toxic and recyclable.
* **Excellent Adhesion to Matrices:** Bonds well with various polymeric and cementitious materials.
**Detailed Product Parameters from Kaxite Sealing**
Kaxite Sealing provides a comprehensive range of basalt fiber products. Our manufacturing control ensures consistent quality and performance. Below are the detailed technical specifications for our standard continuous basalt fiber products.
**Key Physical & Mechanical Properties:**
| Property | Unit | Typical Value | Test Standard |
| :--- | :--- | :--- | :--- |
| **Filament Diameter** | μm | 9 - 21 | ASTM D578 |
| **Density** | g/cm³ | 2.65 - 2.80 | ASTM D792 |
| **Tensile Strength** | MPa | 3,000 - 4,800 | ASTM D2343 |
| **Elastic Modulus** | GPa | 85 - 110 | ASTM D2343 |
| **Elongation at Break** | % | 3.0 - 3.5 | ASTM D2343 |
| **Softening Point** | °C | ~960 | - |
| **Maximum Service Temperature** | °C | 700 (continuous) | - |
| **Thermal Conductivity** | W/(m·K) | 0.030 - 0.038 | ASTM C518 |
**Chemical Composition (Typical % by weight):**
| Component | SiO₂ | Al₂O₃ | Fe₂O₃/FeO | CaO | MgO | Na₂O + K₂O | TiO₂ |
| :--- | :--- | :--- | :--- | :--- | :--- | :--- | :--- |
| **Percentage** | 50-55% | 14-18% | 9-14% | 7-11% | 4-7% | 3-6% | 0.8-2.5% |
**Product Forms Available from Kaxite Sealing:**
We supply basalt fiber in multiple forms to suit diverse manufacturing processes:
* **Continuous Roving:** For filament winding, pultrusion, weaving.
* **Chopped Strands:** (3mm, 6mm, 12mm, 24mm) For reinforcement in thermoplastics, brake pads, gaskets.

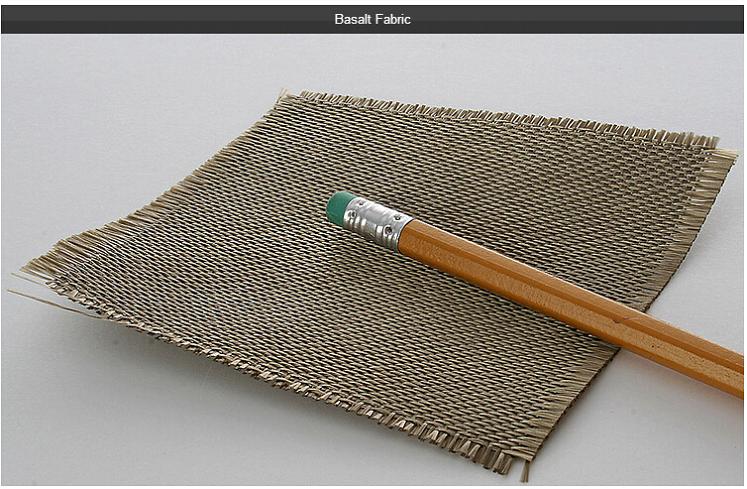

* **Woven Fabrics:** Plain, twill, and satin weaves for composite laminates.
* **Basalt Fiber Mat:** Chopped strand mat (CSM) and continuous filament mat (CFM) for hand lay-up.
* **Basalt Fiber Scrim:** Lightweight mesh for reinforcement in construction materials.
* **Basalt Fiber Needled Felt:** For high-temperature insulation and filtration.
**Industrial Applications of Basalt Fiber**
The versatility of basalt fiber allows it to be used across numerous sectors:
**1. Construction and Infrastructure:**
* **Reinforcement for Concrete:** Basalt fiber-reinforced polymer (BFRP) rebar and mesh for corrosion-resistant concrete structures (bridges, seawalls, parking garages).
* **Crack Control in Asphalt:** Basalt fiber grids and additives improve fatigue resistance and durability of road surfaces.
* **Facade and Interior Panels:** Lightweight, strong, and fire-resistant composite panels.
**2. Automotive and Transportation:**
* **Composite Parts:** Structural components, interior panels, and underbody covers to reduce vehicle weight.
* **Friction Materials:** As an asbestos-free reinforcement in brake pads and clutch facings, offering stable friction performance and low wear.
* **Exhaust System Insulation:** Wraps and felts to manage heat.
**3. Marine and Water Management:**
* **Boat Hulls and Decks:** Corrosion-resistant composite laminates for recreational and commercial vessels.
* **Pipes and Tanks:** For chemical and water handling systems requiring durability against corrosive fluids.
**4. Fire Protection and Insulation:**
* **Fire Blankets and Curtains:** High-temperature textiles for passive fire protection.
* **Industrial Insulation:** Needled felts and textiles for piping, furnaces, and high-temperature equipment.
* **Fire-resistant Composites:** For public transport, building interiors, and electrical enclosures.
**5. Electrical and Specialty Applications:**
* **PCB Substrates:** Utilizing its low dielectric constant and thermal stability.
* **Wind Turbine Blades:** As a component in hybrid composites for structural reinforcement.
* **Ballistics and Armor:** Used in hybrid fabrics for protective applications due to its high energy absorption.
**Basalt Fiber FAQ (Frequently Asked Questions)**
**Q: How does basalt fiber compare to E-glass fiber?**
A: Basalt fiber generally offers 15-20% higher tensile strength, better modulus, superior temperature resistance (by several hundred degrees Celsius), and significantly improved chemical stability, especially in alkaline environments like concrete. While slightly more expensive than E-glass, its enhanced durability often leads to a better lifecycle cost.
**Q: Is basalt fiber similar to carbon fiber?**
A: They are different. Carbon fiber is lighter and has a much higher modulus and strength, making it ideal for ultra-high-performance applications like aerospace. Basalt fiber has a lower modulus and strength than carbon but offers better strain-to-failure, is more cost-effective, has superior thermal and fire resistance, and is naturally electrically insulating (whereas carbon fiber is conductive).
**Q: Can basalt fiber be used as a direct replacement for glass fiber in my process?**
A: In many processes like pultrusion, filament winding, and hand lay-up, basalt fiber can be used as a direct drop-in replacement for glass fiber rovings or fabrics with minimal process adjustment. However, due to its higher hardness, tool wear may be slightly increased. Compatibility with specific resin systems should be verified; Kaxite Sealing provides technical support for this.
**Q: What are the key benefits of using Kaxite Sealing basalt fiber in concrete reinforcement?**
A: Kaxite Sealing's BFRP rebar is non-corrosive, ensuring no rust stains or concrete spalling, which is critical in harsh environments. It is non-magnetic and has high dielectric strength, making it perfect for MRI facilities and power substations. It is also lighter than steel, simplifying handling and installation. Our products are certified for use in civil engineering applications.
**Q: How environmentally friendly is basalt fiber production?**
A: The process is very eco-friendly. The raw material is natural volcanic rock, which is abundant. The melting process does not require chemical additives, only heat. It generates no toxic emissions, and the production waste (if any) is inert and can often be recycled back into the process. Its long service life and recyclability further enhance its green credentials.
**Q: What sizing agents does Kaxite Sealing offer on its fibers?**
A: Kaxite Sealing provides fibers with various sizing formulations to optimize performance for different matrices. We offer standard sizing for epoxy and polyester resins, as well as specialized sizing for vinyl ester, polypropylene, cement, and phenol-formaldehyde binders used in friction materials. Custom sizing can be developed for specific customer needs.
**Q: What is the shelf life and proper storage condition for basalt fiber products?**
A: When stored in a cool, dry environment in its original, unopened packaging, basalt fiber products from Kaxite Sealing have a shelf life of at least 12 months. Exposure to high humidity can compromise the effectiveness of the sizing agent. We recommend using climate-controlled warehouses.
**Q: Can basalt fiber be combined with other fibers?**
A: Absolutely. Hybrid composites combining basalt with carbon, glass, or aramid fibers are increasingly common. This allows engineers to tailor the cost/performance ratio, optimizing properties like strength, stiffness, impact resistance, and fire performance for specific applications. Kaxite Sealing can supply hybrid fabrics or rovings upon request.
**Q: What quality control standards does Kaxite Sealing adhere to?**
A: Kaxite Sealing implements a stringent Quality Management System certified to ISO 9001. Our production is monitored at every stage, from raw material selection to final packaging. We perform batch testing for key parameters like tensile strength, filament diameter, and sizing content, providing Certificates of Analysis with each shipment to ensure traceability and consistent performance.
**Selecting the Right Basalt Fiber Product**
Choosing the correct form and specification of basalt fiber is crucial for project success. Key selection criteria include:
* **Application Requirements:** Define the primary function (structural reinforcement, thermal insulation, friction, chemical resistance).
* **Matrix Compatibility:** Ensure the fiber sizing is compatible with your resin or binder system (polyester, epoxy, cement, etc.).
* **Manufacturing Process:** Select the product form (roving, fabric, chopped strands) that fits your production method (pultrusion, weaving, injection molding).
* **Regulatory and Certification Needs:** Identify any industry-specific standards that must be met (e.g., construction codes, automotive material specifications).
* **Performance vs. Cost Balance:** Evaluate the total lifecycle cost, considering the longevity and reduced maintenance offered by basalt fiber's durability.
