Lens Ring Joint Gasket
Looking for more information on Lens Ring Joint Gasket? We are the China leading Supplier of Lens Ring Joint Gasket.Any need of Lens Ring Joint Gasket,please feel free to congtact us.
-
Double Jacket Gasket
Looking for more information on Double Jacket Gasket? We are the China leading Supplier of Double Jacket Gasket.Any need of Double Jacket Gasket,please feel free to congtact us.
-
Corrugated Gaskets
Looking for more information on Corrugated Gaskets? We are the China leading Supplier of Corrugated Gaskets.Any need of Corrugated Gaskets,please feel free to congtact us.
-
Pure PTFE Gasket
Looking for more information on Pure PTFE Gasket? We are the China leading Supplier of Pure PTFE Gasket.Any need of Pure PTFE Gasket,please feel free to congtact us.
-
PTFE Envelope Gasket
Looking for more information on PTFE Envelope Gasket? We are the China leading Supplier of PTFE Envelope Gasket.Any need of PTFE Envelope Gasket,please feel free to congtact us.

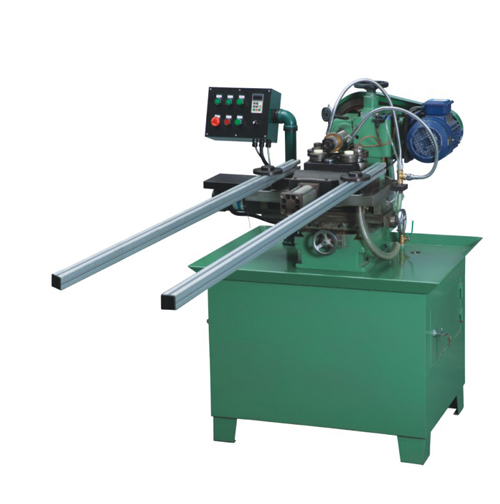

Kammprofile Gasket Machine
Kammprofile pitch both 1.0 and 1.5mm available. HSS saw blades and Alloy blade in set for option.
| Specification as following: | |
| STYLE |
KXT E1300 Kammprofile gasket machine |
| Gasket thickness | 3 -- 4mm |
| Gasket width | 10--50mm |
| Maximum gasket OD | 4000mm |
| Minimum gasket ID | 280mm |
| type of tooth | 1.5mm or 1.0mm pitch tooth, or wave tooth |
| Total power | 4kw |
| Spindle motor power | 1.5kw |
| Spindle speed | 0--1200 rpm |
| Feed motor power | 0.4kw |
| Feed linear speed | 0--20mm/s |
| Frequency Converter | 2.2G 0.4G |
| Power supply voltage | 380V/220V, 3phases, for option |
| Air compressor | 0.6-0.8 MPA |
| Machine measurement | 800*1000*1360mm |
| Machine net weight | 500kg |
